433.92MHZ Wireless Caller Waiter System for Kitchen Chef Call Waiter

FOB Reference Price:Get Latest Price
$65.00 - $90.00 / Sets | 1 Set/Sets (Min. Order)
Color:
As shown
Shipping:
Support Sea freight
Customization:
Customized logo (Min. Order: 50 Sets)
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
YCALL
Model Number:
K-999+K-300plus+K-V
Product Name:
Wireless Caller Waiter System
frequency:
433.92mhz
Certification:
CE approved
Watch color:
Black, green, red, blue, yellow
Button battery:
12V 23A battery
Transmitter Distance:
200m in open area
Button Size:
60*60*22mm
Keypad Size:
160*118*60mm
Warranty:
12 months
Application:
restaurant, hotel, cafe, hospital, clinic etc
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week -Wireless Caller Waiter System
Packaging & Delivery
Packaging Details
each unit will be in standard box
Port
Shenzhen

433.92MHZ Wireless Caller Waiter System for Kitchen Chef Call Waiter











Product Description

wireless calling system is widely used in service area of restaurant, hotel, café, hospital, bar, casino and so on. It consist of table button for guest or keypad for kitchen/counter and signal receiver for waiter use. When the guest need any service, they just press the button on the table, the table number will be showed on the RECEIVER of watch screen with sound or vibration. And when the food is ready, the kitchen can press the according guest's number on the keypad transmitter, then the waiter will receive the calling number on watch, so the waiters could offer service very timely.

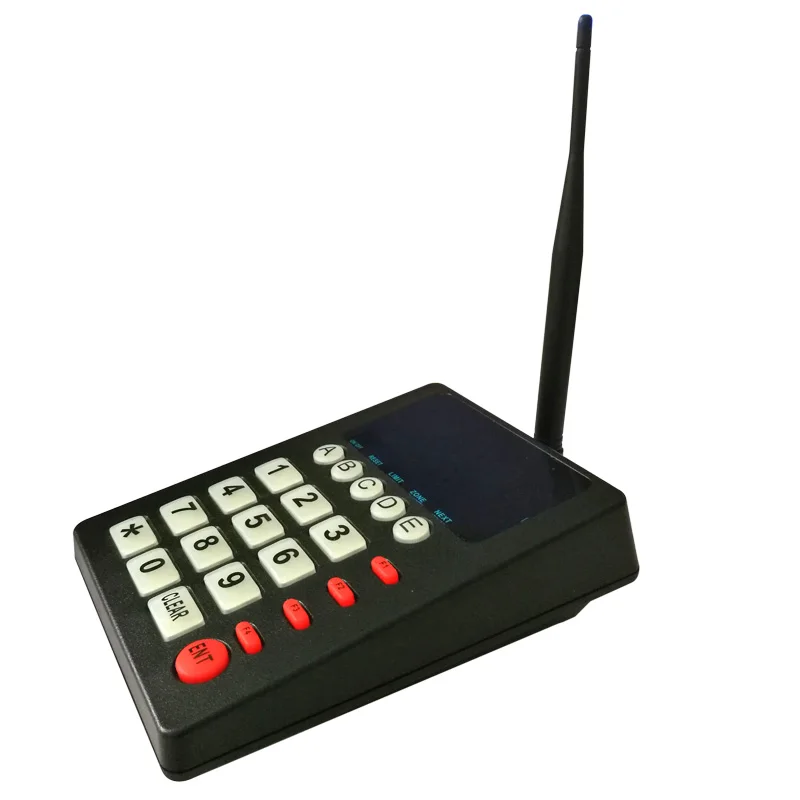

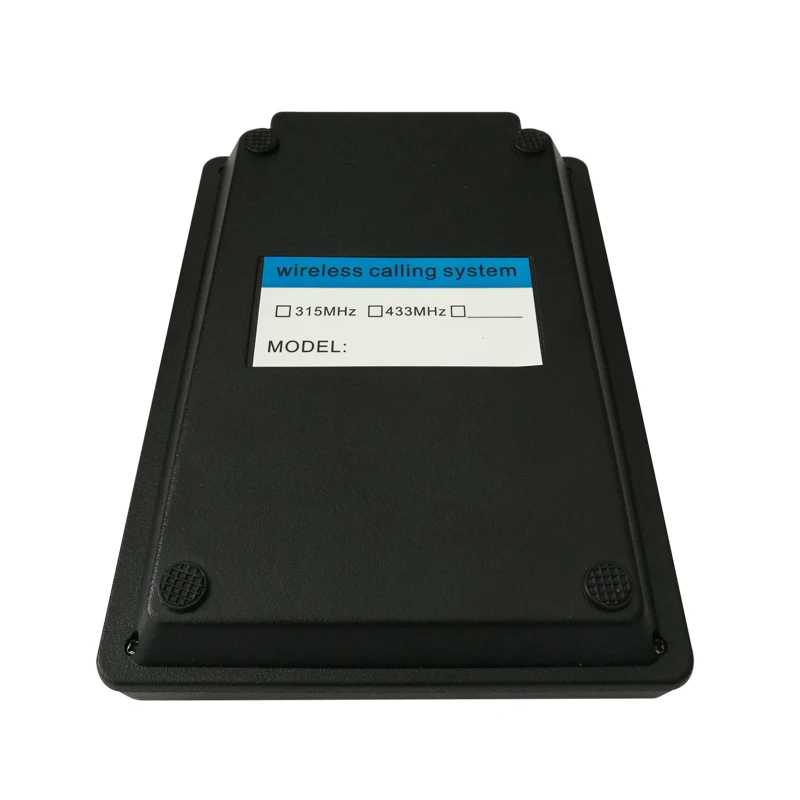

Specification of keypad transmitter K-999:

1. With high strength ABS material cover

2. Using digital code technology and the function is steady and reliable

3. It can call 999 persons

4. With power on/off function

5. With Clear and Next function

6. Default first number is for counter number and last 3-digit number for customer number



Technical parameters:

Signal Range: 200m in open area

Working voltage: DC12V

Working current: <20mA

Working Frequency: 433.92MHz

Dimension:160*118*60mm






 Specification of K-300plus Wrist Watch :



1. Can work with 500pcs 1-key and multi-key transmitter in max


2. Can show 3 group call number in one time


3. Show 4-digit number from 0001-9999 and first letter can be A-Z


4. Can indicate different service type via words or letter.(call;bill;drink;dessert;help etc and A-Z)


5. Can record when call come in and Can count the call times of each number


6. Can store 50 calls and track the history calls up and down


7. Shows current time when stand-by


8. 3 reminder ways:sound promt and vibration or both


9. Battery is rechargeable


10.Dimension:50*41*16mm



11.Color: balck, green,red, yellow, blue



12.Two display mode:live view and queue view


“live view” means, when No.1 No.2 No.3 call in turn, screen is show 0003 0002 0001. Newest call number show on the top of screen.


“queue view” means, when No.1 No.2 No.3 call in turn, screen is show 0001 0002 0003. Oldest call number show on the top of screen.





Advantage:


1 Save labor intensive and more economic


2 Notifies nurse or waiter immediately


3 Save the time for emergency


4 Easy operation and installation



5 Eliminates noisy and keep quiet


6 Decrease amount of displeased patient or customer or passenger











Specification of Button K-V:





1. 100% Water-proof



2. 1-key: CALL



3. Material: PC



4. Work with our receiver to combine a complete wireless calling system



5. Can be installed on each table by double-side tape or screw



6. Color: white



Technical Parameter:





*Use Frequency: 433.92MHz



*Transmitted Power: ≤20mW



*Transmitted Distance: 200m in open area



*Dimension: 60*60*20mm



Any language any LOGO acceptable!!!













Schematic diagram















Packaging & Shipping





Delivery:

Sample order within 1-3 days and bulk order about 10-20 days.



Packing Details:

Neutral Packing,Export standard carton package include EPE Foam or at each customer's request.
